17m³ / Min Downhole Drilling Tools Hammer QSS - 50 Model 61.0Kg Weight

I'm Online Chat Now
Certification
China Putian Qideli Drilling Tools Co., Ltd. certification
I am now very confident in our company's product, is better than others' product.Good drilling tools, made by QIDELI.

—— Zhao Li Dong-----Agent on Xining Qinghai China

Our DTH hammer has passed the test of 4,500 meters and there are no problems at present. Thank you for your quality products.

—— Kassym------Kazakhstan customer

17m³ / Min Downhole Drilling Tools Hammer QSS - 50 Model 61.0Kg Weight

17m³ / Min Downhole Drilling Tools Hammer QSS - 50 Model 61.0Kg Weight
17m³ / Min Downhole Drilling Tools Hammer QSS - 50 Model 61.0Kg Weight

Large Image :  17m³ / Min Downhole Drilling Tools Hammer QSS - 50 Model 61.0Kg Weight Get Best Price

Product Details:

Place of Origin: FUJIAN CHINA
Brand Name: QIDELI
Certification: SGS
Model Number: QSS-50 DTH HAMMER

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Conventional export packing
Delivery Time: 1~15 work days
Payment Terms: T/T, Western Union, , L/C
Detailed Product Description
Length(Less Bit): 978mm Weight(Less Bit): 61.0Kg
Bit Shank: QSS50 External Diameter: Φ126mm
Working Pressure: 1.0-2.8Mpa Connection Thread: API 2 3/8"Reg
Air Consumption: 2.4Mpa 17m³/min Bits Diameter: Φ136-Φ155mm
High Light:

2.8Mpa dth hammers

,

mincon air hammer

Product Description



A kind of DTH hammer which is shorter but more efficient and energy efficient. we called them supper speed series DTH hammer.



High impact frequency, high drilling speed, low gas consumption.



It is suitable for all working conditions, especially good performance in mine blasting drilling.

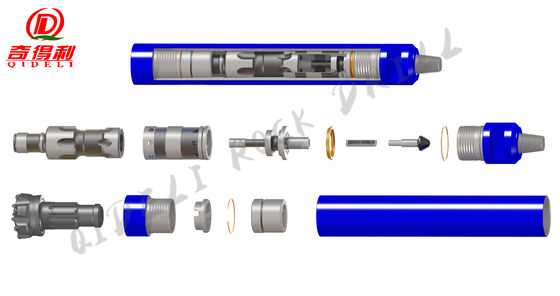

17m³ / Min Downhole Drilling Tools Hammer QSS - 50 Model 61.0Kg Weight 0

Product Features:



1. The drill bit does not need nylon tube, thus saving the trouble caused by nylon tube breaking, breakage, thermal expansion and cold shrinkage.


2. Low impact energy loss, high impact frequency, and the drilling speed is 15%-30% faster than that of the same type of nylon pipe.


3. The structure is very simple, the component reliability is good, the impactor life is long, the maintenance is simple, the cost is low.


4. Low air consumption, wind and oil saving, more than 10% oil saving than the same type of nylon pipe impactor.



17m³ / Min Downhole Drilling Tools Hammer QSS - 50 Model 61.0Kg Weight 1
