|Hole Range:||90-140mm||DTH Hammer:||35A 45A|
|Hole Depth(Max):||30m||Drill Pipe Length:||3000mm|
|Drill Pipe Dia:||A:68mm B:76mm||Weight:||5500kg|
top hammer drill rig,
water borehole drilling rig

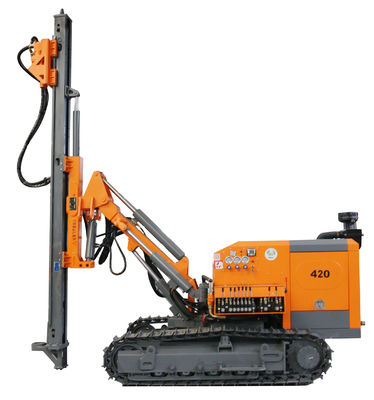

Mature model ZGYX-420 DTH drilling rig using 3inch 4inch hammer and bits for mining
1. The supporting power standard of this type of drill is divided into two types: yuchai four-cylinder YC4D80 and electric 30KW.To configure the three-meter drill pipe is divided into two specifications, either of which are: either of which are either of which are either of which are either of which are either of which are either of which are either of which are either of which are either of which are either of which are either of which are not.
2. The machine strengthens the strength of each part of the structure and can fully bear the functional requirements of various working conditions.
3. The rotary head is driven by the double-cycloidal motor, which greatly strengthens the torque of the drill and makes the drilling hole range larger.
4. The new design of the outer cover makes the maintenance of the drill very convenient and strengthens the aesthetics of the drill.
5. Dry dust collector device is optional. No dust is drilled to make it more environmentally friendly and energy-saving.
Standard assembly plunger walking motor, more powerful climbing, reliable quality.
1. Rotationg unit driven by double cycloidal motor for more powerful rotation and less drill tools jamming.
2.ZGYX 420E standard equipped with plunger piston motor for greater climb ability and more reliable quality.
3.ZGYX 420E standard equipped with box type tramming beam and national standard engineering machinery tramming track.
4. All drill rigs with forgery protection tagged for identificationcheck at any time.
Main Technical Parameters
